Name: UTMT
Brand: Duratech Industrial Group Limited.

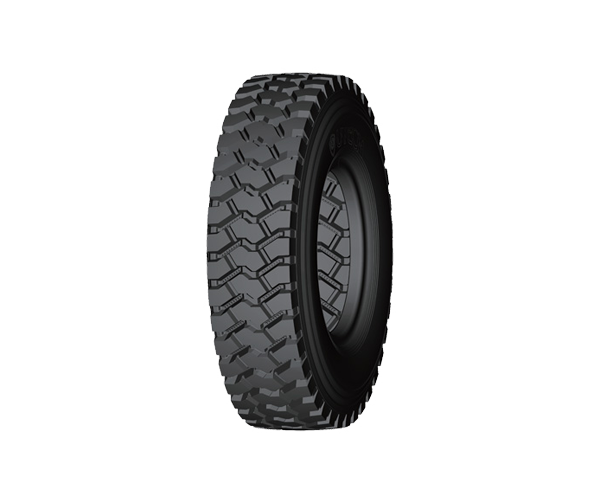

UTMT E4 OTR Tire

12.00R20|12.00R24

Off-highway tippers are usually faced with harsh working condition and the common practice of overloading. UTMT is a dump truck tires pattern designed to help the clients take on these challenges with its robust steel belt package, strengthened carcass and reinforce sidewall. And ideally it is recommended for hauling applications within the single trip distance less than 5km.

Features Of UTMT OTR Tires

Aggressive multi-block tread design:

The multi-block tread is designed with tough lugs and increased tread depth to deliver optimum traction.
Extra load capacity enabled by reinforced tire architecture:
- High tensile steel belt package built in to increase the tire strength and to lower risks of puncture;
- The robust carcass is engineered with a loading capacity of up to 8.5 metric tons.
Extended wear life and cut resistance:
- The 32mm super deep tread offers extended wear life of this type of off the road tyre;
- Special shoulder-sidewall intersection design is used to increase the cut resistance.

Specifications of UTMT OTR Tires

Size	Ply Rating	TRA Code	Rim	Section width		Overall Diameter		Tread Depth		Load Index & Speed Symbol	Type
Size	Ply Rating	TRA Code	Rim	in	mm	in	mm	32nds	mm	Load Index & Speed Symbol	Type
12.00R20	22	E4	8.5	12.40	315	44.29	1125	40	32	178A5	TT
12.00R24	24	E4	8.5	12.40	315	49.02	1245	40	32	196A5	TT/TL
